Set Position Along Path Icon Set Position Along Path

This action will set the position of an instance along a path. The value is normalised from 0 - 1, so if you set it to, for example, 0.5, the instance will be moved to exactly the middle of the path. Note that you must have called the Start Following Path action to assign a path to the instance for this to have any effect.

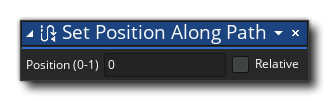

Action Syntax:

Path Position Action

Arguments:

ArgumentDescription
PositionThe position (from 0 - 1) along the path to place the instance

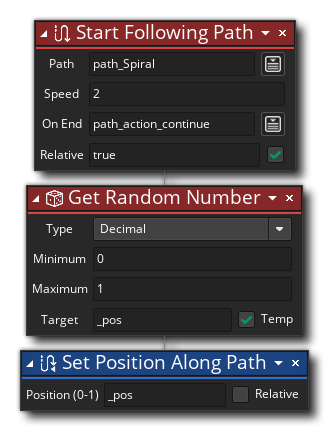

Example:

Path Position ExampleThe above action block code starts the instance along a path and then generates a random decimal value between 0 and 1. This value is stored in a temporary local variable and used to set the position of the instance along the path.
